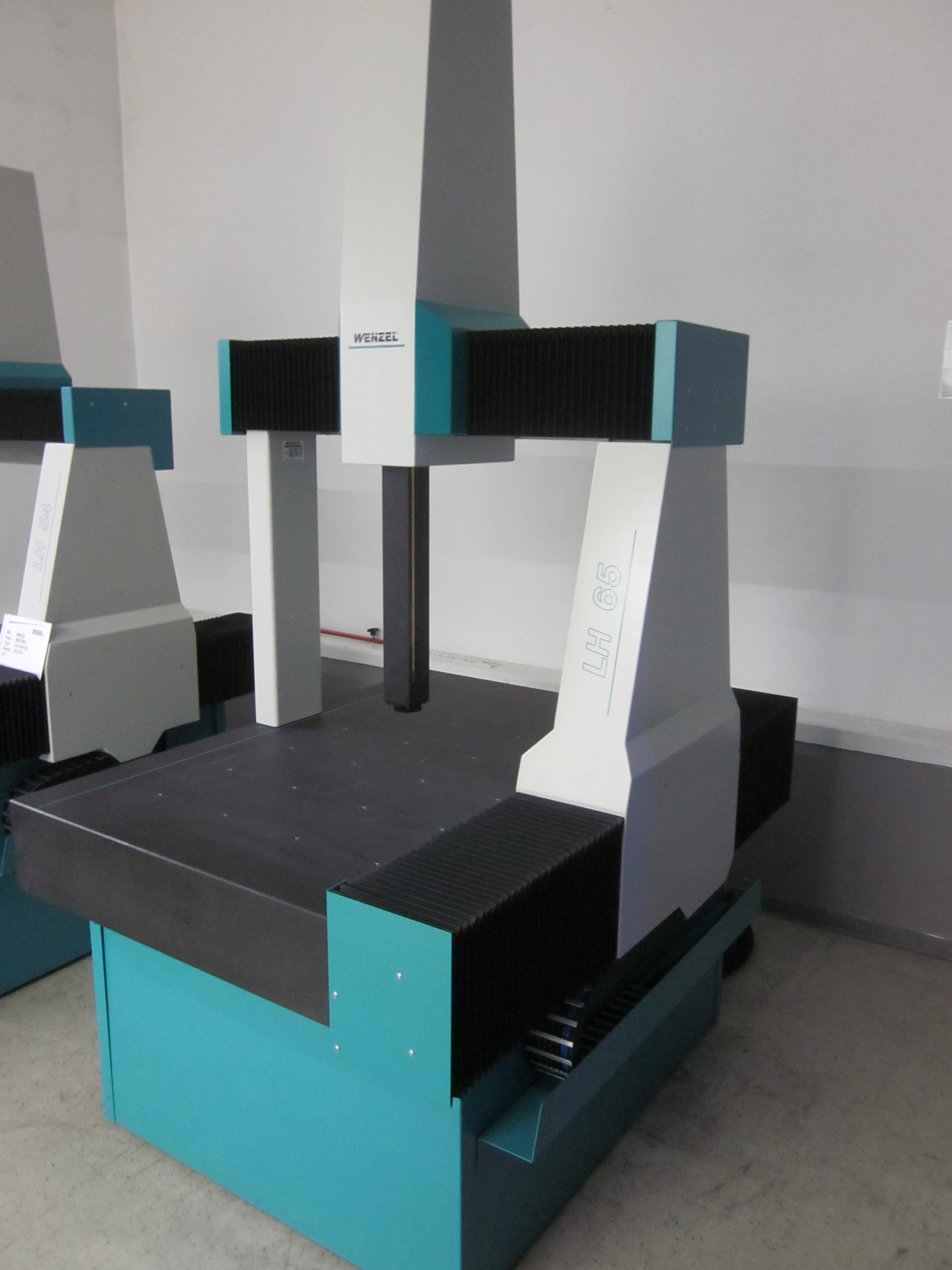

LH 65 — ID: LH4125/LH4225

Name: LH 65 — ID: LH4125/LH4225
Brand: WENZEL

Machine data

producer

WENZEL

type

LH 65

Year of construction

2001

location

WENZEL

measurement range

X-axis [mm]

650

Y-axis [mm]

1000

Z axis [mm]

500

Measurement uncertainty

MPEE [μm]

2.5 + L/300

MPEP [μm]

2.5

MPETHP** [μm]

MPETHP** [sec]

temperature range

18°C — 22°C

temperature gradient

1 K/h, 1 K/m, 2 K/d

In accordance with DIN EN ISO 10360-2

fitment

controller

WPC2040/3, HT400

Touch system option 1

PH10M | TP200 | 2x SF | SCR200

Option 2 touch system

PH10M | SP25M | 1x SM25-2 | 2x SH25-2 | 1x FCR25 (3 ports)

Option 3 touch system

Software option 1

WM | Quartis X3 FREEFORM

Software option 2

WM | Quartis X3M25 FREEFORM

Software option 3

accessory

PC system with Windows 11

Other option 1

18-piece stylus set M2

Other option 2

19-piece stylus set M3

Other option 3

description

WM | Quartis FreeForm package
New PC system

Scanning System

Active damping

‍

Subject to prior sale and changes in design and specification without prior notice. The machine may show signs of use.

www.wenzel-group.com

Machine data

Producer

WENZEL

Type

LH 65

Year of construction

2001

Location

WENZEL

Measurement range

X-axis [mm]

650

Y-axis [mm]

1000

Z axis [mm]

500

Measurement uncertainty

MPEE [μm]

2.5 + L/300

MPEP [μm]

2.5

MPETHP** [μm]

MPETHP** [sec]

Temperature range

18°C — 22°C

Temperature gradient

1 K/h, 1 K/m, 2 K/d

In accordance with DIN EN ISO 10360-2

Equipment

Controller

WPC2040/3, HT400

Touch system option 1

PH10M | TP200 | 2x SF | SCR200

Touch system option
2

PH10M | SP25M | 1x SM25-2 | 2x SH25-2 | 1x FCR25 (3 ports)

Option 3 touch system

Software option 1

WM | Quartis X3 FREEFORM

Software option 2

WM | Quartis X3M25 FREEFORM

Software option 3

Accessory

PC system with Windows 11

Other option 1

18-piece stylus set M2

Other option 2

19-piece stylus set M3

Other option 3

Description

WM | Quartis FreeForm package
New PC system

Scanning System

Active damping

‍

Subject to prior sale and changes in design and specification without prior notice. The machine may show signs of use.
